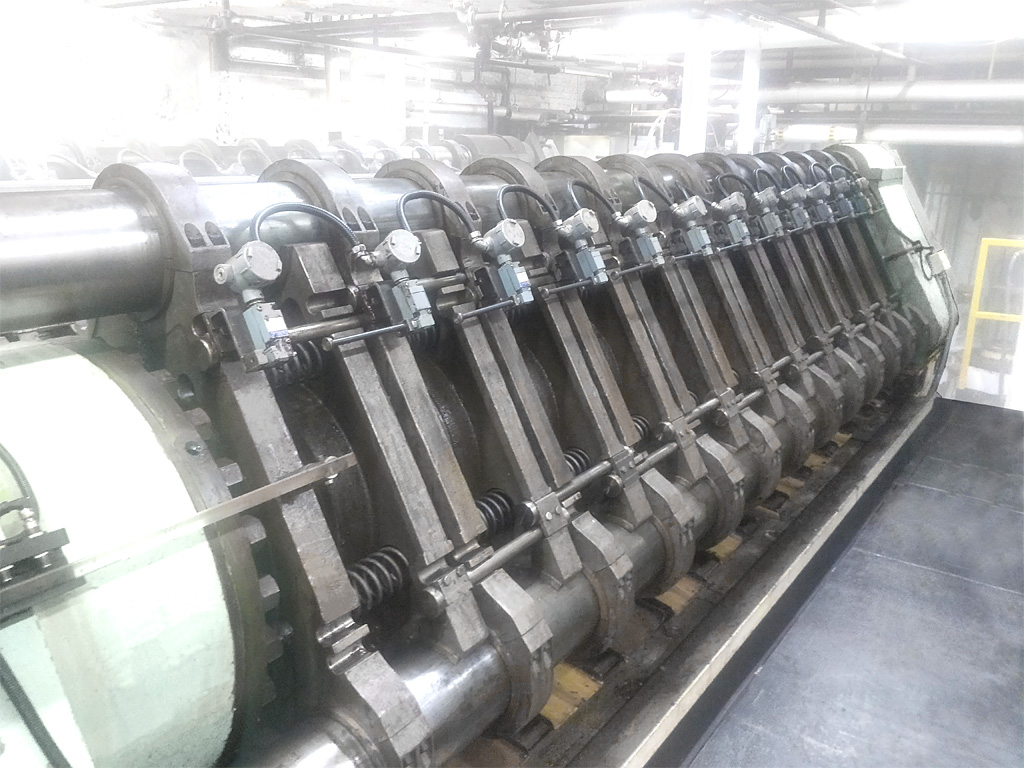

Cocoa Butter Presses manufactured By Petzholdt Heidenauer of Germany, type 1450/2.1. The press is equipped with 12 Pressing pots and 12 counter pots fitted on two horizontal columns. The inside diameter of the pots is 450mm, which can together contain up to 185kg cocoa liquor per cycle.
The whole system is in a good state of maintenance. We now offer this machine, believing this is a very good press which can run fine for many years to come.
Note that the photos show our upgraded filling system mounted on the press. When desired the original filling system can be mounted instead.

Specifications: Type of press 1450/2.1 Number of pots 12 Inner diameter of pots 450 mm Liquor batch capacity 185 kg Max. working pressure 550 bar Weight of press 23.150 kg Length 6,2 meters

A Cocoa butter press can be delivered with: Pre heating and mixing system Liquor filling pump Vibrating cake conveyor Cake breaker Upgraded filling system Electrical control User Manual

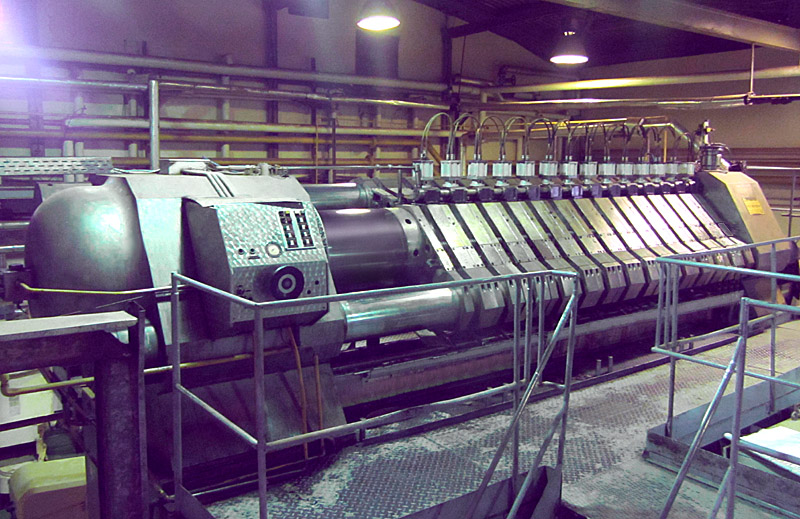

Cocoa Butter Press manufactured by Carle&Montenary (Italy), type POV 540. The press is equipped with 12 Pressing pots and 12 counter pots fitted on two horizontal columns. The inside diameter of the pots is 424mm, which can together contain up to 170kg cocoa liquor per cycle.
The whole system is currently being refurbished. The large Tie-Rods (columns) can been replaced with newly produced ones, with a double nut. The picture also shows a modernized liquor filling system. Note that the press on sale has a machined cylinder body instead of this cast-iron one in the photos.
This press can be delivered with hydraulic unit, cake breaker, cake conveyor, cocoa liquor pump and Liquor Pre-Heating System.
In the past this press has briefly been producing for a company in Italy. We can now offer this machine, believing this is a very good press which can run fine for many years to come.

Specifications: Type of press POV 540 Number of pots 12 Inner diameter of pots 424 mm Liquor batch capacity 170 kg Max. working pressure 500 bar Weight of press +-26.000 kg Length 6,7 meters

The Cocoa butter press can be delivered with: Pre heating and mixing system Liquor filling pump Vibrating cake conveyor Cake breaker Upgraded filling system Electrical control User Manual

A complete installation for the deoderising of cocoa butter, to produce butter with a neutral and consistent flavour.
The system is to be supplied with filtered cocoa butter. The deoderizing process uses steam to extract the volatile components from the butter. This is done inside the deoderizing vessel, after which the volatile components are discharged to a condensor, by use of a vacuum system.
The system consists of the main deoderising vessel with injection, heating and aspiration facilities. Directly attached is the main condensor vessel. The vacuum is created with a multi-stage vacuum pump system based on the steam-jet principle. For energy efficiency a heat exchanger is used in between the butter supply and circulation. A final stage butter after-filter is also integrated.
All auxiliary equipment such as valves and pumps are included. Control systems, software and documentation are available.

Specifications deoderizing vessel: Type Krupp 2,5-4 T/C.H. Content 9800 liter Diameter 2200 mm Height 3600 mm Specifications vacuum pump system: Type Körting 12/41/0350 Amount of jet-pumps 4 pcs. Suction pressure 6,7 mbar abs Steam usage 50 kg/h Specifications final condensor: Type Josef Bertsch 11741 Content 350 liter Year 2000 Material CrNi Steel

Specifications heat exchanger: Type Fischer AG - 61 PI Year 2000 Material 1.4404/0,8mm Weight 1900 kg Specifications after-filter: Type Pall AG - PMS031G54J Year 2001 Vessel content 16 liter filter candles 3 pcs.
